Coax Giga Access

Expand new business areas, such as IPTV, Wi-Fi, cloud storage by reusing in-building coaxial cabling is easier than you think

Contact Us
Products for

Highrise / MDU
Offices | Apartments | Hotels | Holiday Accommodation

Low-set
Aged Care | Resorts | Hospitals | Mine Camps

SFU
Townhouse and Garden Homes | Single Family Homes

Benefits

1Gbps on RG-59 coaxial cable up to 300 meters (1000 feet)

1Gbps on RG-6 coaxial cable up to 800 meters (2600 feet)

Leverage existing in-building wiring

Easy deployment and reduce downtime

Which DPU is right for you?
  • Coax Series

  • DP-4206C

  • DP-4208CE

  • DP-4204CRE

  • DP-4224CX

  • Port
  • 10Gbps SFP+
  • 1
  • 2
  • 1
  • 2
  • 1Gbps SFP
  • 1
  • 2
  • 1
  • 2
  • 1GbE
  • 2
  • 1
  • 1
  • 1
  • G.hn Wave2 Ports
  • 6 * F
  • 8 * F
  • 4 * F
  • 24 * F
  • Power Supply
  • Reverse Power
  • ×
  • ×
  • √
  • ×
  • Input power & frequency
  • 100-240VAC / 50-60Hz
  • 110-264VAC / 50-60Hz or
    40~95VAC / 50-60Hz
  • USB Type-C PD3.0
  • Dual Power
    100-240VAC / 50-60Hz
    DC 48V
  • Maxmimum Power Rating
  • <40W
  • <62W
  • <24W
  • <600W
  • Physical
  • Dimensions(WxDxH)
  • 320mm*234mm*45mm
  • 270mm *230mm *145mm
    (include connector)
  • 230mm*180mm*80mm
  • 1U high(440mm *300mm *44mm)
  • Unit Weight
  • <1.9 KG
  • <5.3 KG
  • <3.8 KG
  • <5.3 KG
  • Housing
  • IP40
  • IP65
  • IP67
  • IP40
  • Mounting
  • 19” 1RU Rack Mount or Wall Mount
  • Pedestal，Wall，Pit，Pole
  • Pedestal，Wall，Pit，Pole
  • 19” 1RU Rack Mount
  • Other
  • Cooling
  • Fan
  • Fanlass
  • Fanlass
  • FAN
  • Wiring
  • Fiber
    Ethernet (CAT)
    Coax
  • Client Capacity
  • 96
  • 128
  • 64
  • 384
  • Power over Wire
  • ×
  • ×
  • ×
  • √
  • Switching capabilities
  • VLAN Support
    IGMP Snooping
    IP Routing
    Port Aggregation (LAG)
    Spanning Tree Protocol (STP)
    Quality of Service (QoS)
  • G.hn
  • SISO, each G.hn port supports up to 16 CPEs
    Programmable PSD mask for coexistence with Radio and TV
    Up to 1.7Gbps with Dynamic Time Allocation
Detail of Coax DPU
DP-4206CSee more

DP-4206C

6-Ports DPU for use over Coax Cable

DP-4208CE and DP-4208CVESee more

DP-4208CE and DP-4208CVE

8-Ports Outdoor DPU for use over Coax Cable

DP-4204CRESee more

DP-4204CRE

4-Ports Outdoor Coax DPU with RPF (Reverse Power Feed)

DP-4224CXSee more

DP-4224CX

24-Ports Coax DPU with Long Reach Power over Coax Cable

Need help getting started?
Contact us now!
Which CPE is right for you?
  • Coax Series

  • CP-4201C

  • CP-4202C-S

  • CP-4201CR

  • CP-4202CX-P

  • Port
  • 1GbE
  • 1
  • 2
  • 1
  • 2
  • G.hn Wave2 Ports
  • 1 * F
  • 1 * F
  • 1 * F
  • 1 * F
  • TV Splitter
  • ×
  • √
  • ×
  • ×
  • PoE+
  • ×
  • ×
  • ×
  • 1*30W + 1*15W
  • Reverse Power Feeding (RPF)
  • ×
  • ×
  • √ as PSE
  • ×
  • Power over Wire
  • ×
  • ×
  • ×
  • √ as PD
  • Power Supply
  • Input power & frequency
  • DC12V/1A power adaptor
  • DC12V/1A power adaptor
  • USB Type-C PD3.0
  • USB Type-C PD3.0
  • Maxmimum Power Rating
  • <3W
  • <3W
  • <30W
  • <60W
  • Physical
  • Dimensions(WxDxH)
  • 111.5mm*83mm*24.5mm
  • 103.4mm*60mm*27mm
  • 103.4mm*60mm*27mm
  • 103mm*78mm*32mm
  • Unit Weight
  • 190g
  • 170g
  • 260g
  • 360g
  • Mounting
  • Desktop or wall mount
  • Other
  • Wiring
  • Ethernet (CAT)
    Coax
  • Switching capabilities
  • IGMP Snooping
    Quality of Service (QoS)
  • VLAN Support
    IGMP Snooping
    Quality of Service (QoS)
  • IGMP Snooping
    Quality of Service (QoS)
  • VLAN Support
    IGMP Snooping
    Quality of Service (QoS)
  • G.hn
  • SISO, each G.hn port supports up to 16 CPEs
    Programmable PSD mask for coexistence with Radio and TV
    Up to 1.7Gbps with Dynamic Time Allocation
Detail of Coax CPE
CP-4201C and CP-4204CSee more

CP-4201C and CP-4204C

1/4 GE Port CPE for use over Coax Cable

CP-4202C-SSee more

CP-4202C-S

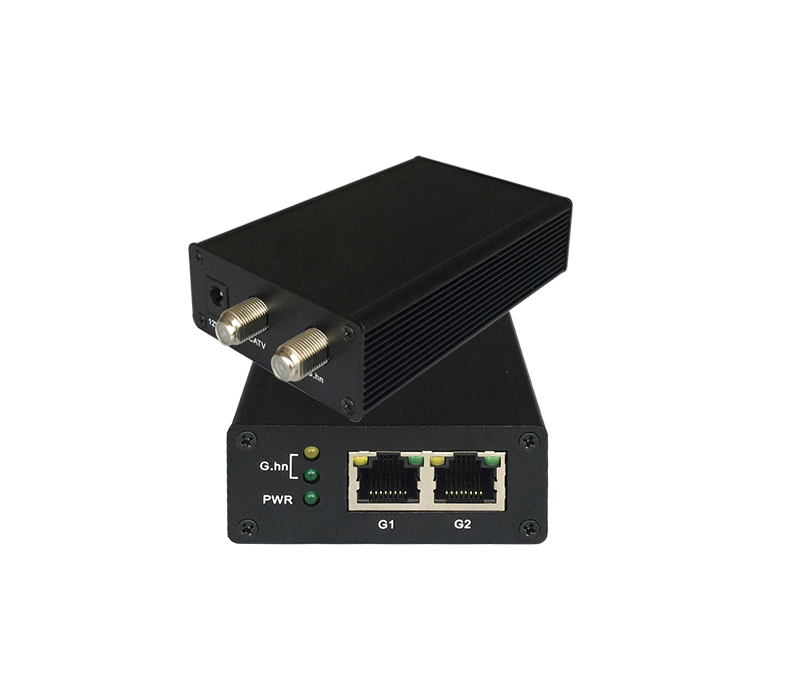

2 GE Ports Ethernet over Coax Adapter Built-in Splitter

CP-4201CRSee more

CP-4201CR

1 GE Port Coax CPE with RPF (Reverse Power Feed)

CP-4202CX-PSee more

CP-4202CX-P

Line Powered Coax CPE with POE+
